100% virgin local famous brand raw material.PR.CA.RT.RO.FO types can be offered,customized type also available.Outer diameter from φ 120~φ 390.
Tungsten Carbide Roller
Tungsten carbide cold rolls,also called tungsten carbide roller,is one of our main product,mainly used for processing reinforcing steel wire for construction industry.The types we make include PR.CA.RT.RO.FO,we also can make it according to customer's requirements.The material of rolls blanks we used are sintered in HIP furnace,100% virgin local famous brand raw material.The rolls we make are all with high hardness,high wear-resistance, excellent impact resistance, heat resistance and durability.The product series can meet the needs of different rolling times, and the product specification is φ 120-φ 390.
Specifications and Grades

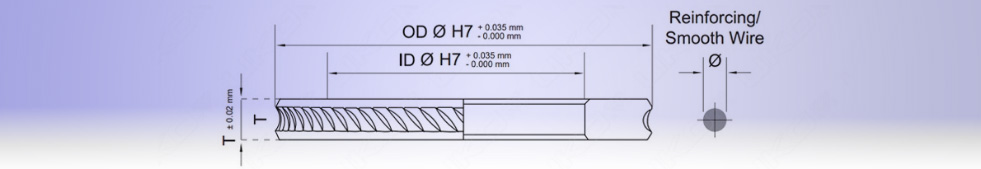

| Standard Rollers Dimension | |||
| Wire Range Ømm | Outside Ømm | Inside Ømm | Thickness mm (T) |
| 4-8.5 | 123 | 82 | 15 |
| 9-12 | 123 | 82 | 20 |
| 4-8.5 | 125 | 82 | 15 |
| 9-12 | 125 | 82 | 20 |
| 4-8.5 | 140 | 90 | 15 |
| 9-12 | 140 | 90 | 20 |
| 4-8.5 | 150 | 90 | 15 |
| 9-12 | 150 | 90 | 20 |
Grades of tungsten carbdie roller
Usually,we have below grades for your choosing,if you have special needs, please contact us for more details.
Grades | Hardness (HRA) | Density (g/cm3) | T.R.S. (N/mm2) | ISO |
| YG6 | ≥91 | 14.9 | ≥1900 | K20 |
| YG6A | ≥92 | 14.9 | ≥1810 | K10 |
| YG6X | ≥91.5 | 14.9 | ≥1860 | K10 |
| YG8 | ≥90 | 14.8 | ≥2080 | K20 |
| YG8C | ≥89 | 14.8 | ≥2020 | K25 |
| YG10 | ≥88.5 | 14.3 | ≥2300 | K40 |
| YG10X | ≥92 | 14.45 | ≥3400 | K40 |
| YG15 | ≥87 | 13.9 | ≥2580 | K40 |
| YG20 | ≥85.5 | 13.5 | ≥2750 | K40 |
| YG20C | ≥84.5 | 13.5 | ≥3000 | K40 |
| YS2T | ≥92 | 14.4 | ≥2500 | M20 |
| YL10.2 | ≥91.5 | 14.5 | ≥3100 | K20-K30 |
| YN6 | ≥88.5 | 14.5 | ≥1800 | |
| YN8 | ≥87.5 | 14.3 | ≥2000 |
