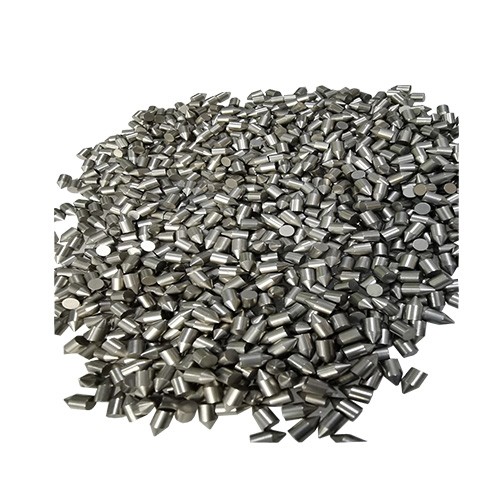

Carbide saw tips for metal cutting

Carbide saw tips,tungsten carbide saw tips used for cutting wood. metal,grass and plastic.We have many different series for your choosing.Different series are suitable for different saw blade and cutting purpose. For customer's inquiry,we need to know customer's specific shape and size requests, so we need the customer to provide detailed drawings to ensure the production of the product will not be wrong.

Carbide saw tips,tungsten carbide saw tips usually brazed on the teeth of the circule saw blades, whose body

material is metal like 65Mn,high speed steel etc.

it can be done by normal brazing process and also laser brazing process.

The saw blade with carbide saw tips normally used for machining wood (nature wood, plywood, MDF, etc.)

and also used for machining metal, like cast iron, Stainless steel, aluminum,and in the meatime,for grass and

plastic.We have many different series carbide saw tips for customer's choice,all the saw blades are used 100% virgin raw material,

and also have many different material grade for different application.

Grade	Hardness （HRA）	Density (g/cm3)	T.R.S （Mpa）	ISO
YG3	≥91.5	15.3	≥1300	K01
YG3X	≥92	15.3	≥1300	K01
YG6	≥91	14.9	≥1900	K20
YG6A	≥92	14.9	≥1810	K10
YG6X	≥91.5	14.9	≥1860	K10
YG8	≥90	14.8	≥2080	K20
YL10.2	≥91.5	14.5	≥3100	K20-K30
YU06	≥94	14.6	≥3000
YU12	≥92.5	14.1	≥3800
ZT8UF	≥93.2	14.5	≥3500
ZTK3	≥90.5	14.05	≥3600
YT15	≥91.5	11.3	≥1800	P10
YT14	≥91	11.5	≥2000	P20
YS25	≥91	13	≥2400	P20
YT5	≥90.5	12.9	≥2200	P30
YW1	≥91.5	13.25	≥1600	M10
YW2	≥90.5	13.1	≥1800	M20
