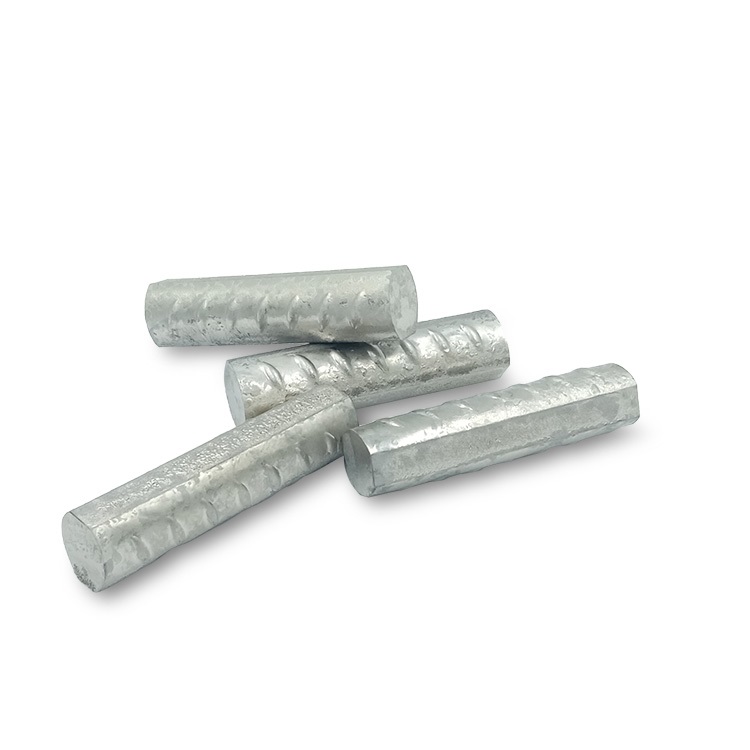

Titanium Carbide TiC Rods For Hammer Head For Casting Industry

Titanium Carbide TiC Rods For Hammer Head For Casting Industry
Material:Titanium carbide, Steel.
Advantages:High hardness and wear resistance
Used for crusher hammer,plate hammer,jaw plate,concave,mantle and crushing roller.

TiC-based cermet
1,The prodouct is mainly used for Hammer head, alloy ball, alloy plate
wear part,machine equipment wear parts, Large crusher hammer head, Large ball mill, To improve the service life of equipment.
2,The prodouct is mainly used for heavy machinery gear tunneling of roadheader which plays an important role in improveing boring machine life,it can improve even3-5 times. Pick contact directly with the rock ,so it is life directly influence boring machine's efficiency.Lot of boring machine such as S100,EBJ1600 with a lot of disadvantages
like low hardness,poor wear resistance,big coefficient of friction,poor corrosion resistance,low thermal conductivity and so on .The titanium carbide based cermet can be used
in bad working environment,and it can growth the life.The titanium have strong high temperature resistant corrosive,so it is composite materials also have such characteristics.

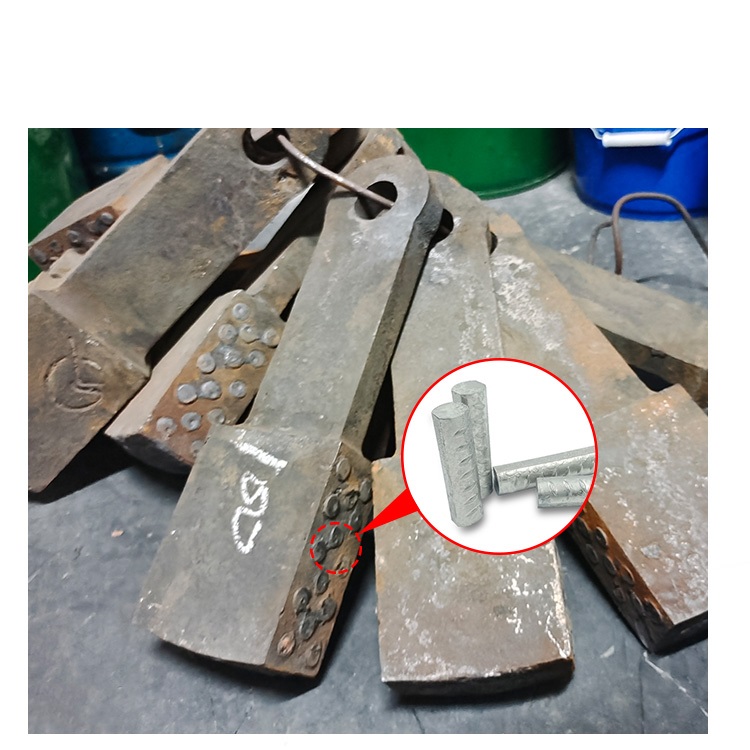

to improve the life of our hammer by inserting Titanium Carbide to the impact face of the hammer.

castings for the cement, mining, aggregates and other industrial industries
;of the hammer.
wear resistance pin in casting hammer head (from 13 Mn steel) for limestone crusher.
Product technical parameters:
1,Hardness (ISO 3878): 82-89 HRA
2,Density :6.0-6.5g/cm3
3,TRS (ISO 3327): 1800-2000 N/mm2
4,Average Grain Size:  1.0 +0.5 μm
5,Porosities: A02B00C00
6,CHEMICAL: TiC(47%)-Fe(37%)-Other(16%)
SIZE:D10 X 50mm,D12 X 50mm,D14 X60mm,D16 X 50mm,D20 X 80mm
size  composition are modified on request.
